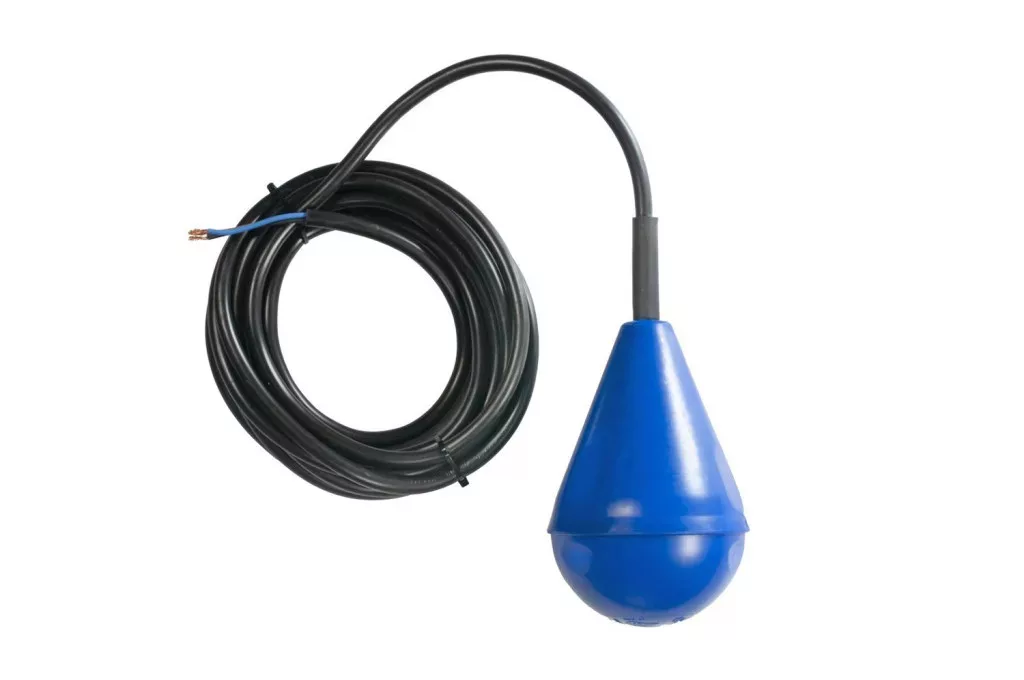

E-FLY Float Switch Filling/Emptying HYP H07BN4-F 10 m (For Wastewater)
28
72.25 €
(56.89 €+VAT)
51.75 €
(40.75 €+VAT)
E-FLY Float Switch Filling/Emptying HYP H07BN4-F 10 m (For Wastewater)
28
In stock
28
72.25 €
(56.89 €+VAT)
51.75 €
(40.75 €+VAT)
Start date: 09/10/2026
While supplies last
Savings
20.50 €
Brand:
MAC3
Connection Angles:
±10°
Micro Switch:
10(3)A-250V
Number of Cables and Section:
3 x 1mm²
Ground Cable:
No
Insulation Class:
II
Volume:
620 cm3
Maximum Liquid Temperature:
50°C
Function:
Tölt/Ürít
Cable Type:
NEOPRENE H07BN4-F
Cable Length:
10 m
Maximum Pressure:
2 bar
Diameter:
Ø100 mm
Certification:
TÜV/CE
IP Rate:
IP68
Weight:
700 g
Dimensions:
156 mm
A reliable product for demanding conditions.
(DOUBLE-CHAMBER MODEL with built-in counterweight. Designed for clear, waste, and sewage water in both turbulent and potentially explosive environments)

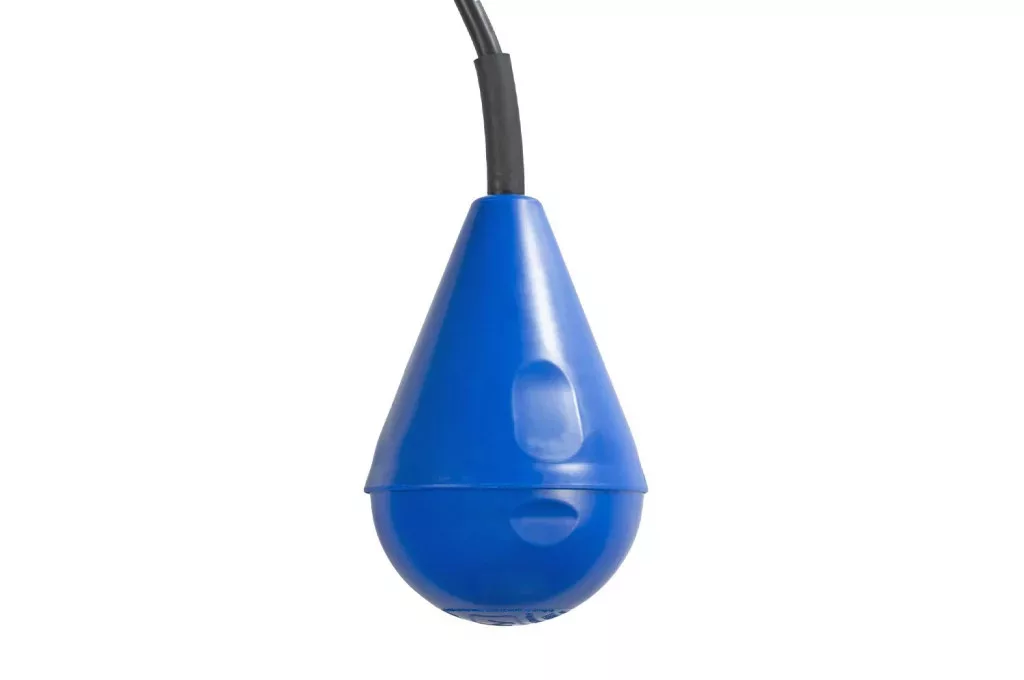

e-Fly is a tilt float switch featured by a substantial weight, smooth shape and a switching angle of :+/- 10°, which ensures accurate performance in applications exposed to turbulent waters and high levels of grease. Furthermore, e-Fly incorporates a counterweight to maintain proper balance, a double watertight chamber rated at IP68 for resistance against shocks, as well as gold-plated electric contacts, avoiding oxidation in low-current applications. The synergy of these features guarantees a durable and high-quality solution for demanding environments.
Designed and made in Italy.
Also available in an ATEX certified version, making it suitable for applications in environments at risk of explosion.
Designed For
 |
Turbulent waters
|
 |
Presence of solids and layers of grease on the surface |  |
Wastewater, sewage |
