E-FLY Float Switch Filling/Emptying NEOPRENE H07RN-F 10 m (For Wastewater)

65.03 €

Name: E-FLY Float Switch Filling/Emptying NEOPRENE H07RN-F 10 m (For Wastewater)
Brand: MAC3
SKU: eGM1006B00
Price: 65.03 EUR
Availability: InStock

(51.20 €+VAT)

E-FLY Float Switch Filling/Emptying NEOPRENE H07RN-F 10 m (For Wastewater)

In stock

65.03 €

(51.20 €+VAT)

Brand:

MAC3

Connection Angles:

±10°

Micro Switch:

10(3)A-250V

Number of Cables and Section:

3 x 1mm²

Ground Cable:

Insulation Class:

Volume:

620 cm3

Maximum Liquid Temperature:

50°C

Function:

Tölt/Ürít

Cable Type:

NEOPRENE H07RN-F

Maximum Pressure:

2 bar

Diameter:

Ø100 mm

Certification:

TÜV/CE

IP Rate:

IP68

Weight:

700 g

Dimensions:

156 mm

Cable Length:

5 m

10 m

A reliable product for demanding conditions.

(DOUBLE-CHAMBER MODEL with built-in counterweight. Designed for clear, waste, and sewage water in both turbulent and potentially explosive environments)

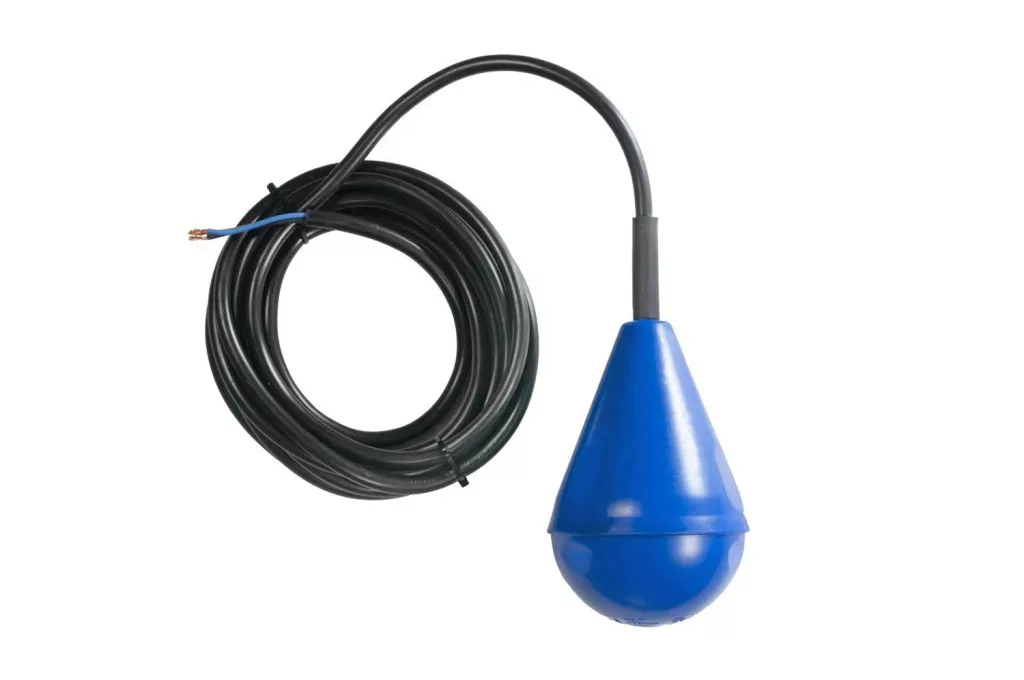

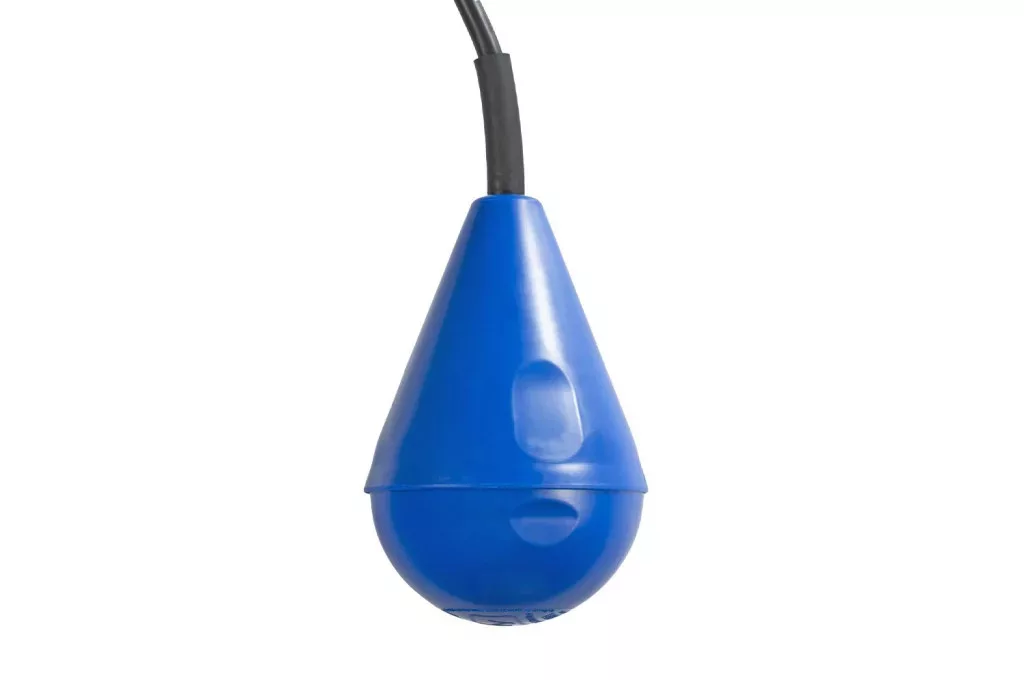

e-Fly is a tilt float switch featured by a substantial weight, smooth shape and a switching angle of :+/- 10°, which ensures accurate performance in applications exposed to turbulent waters and high levels of grease. Furthermore, e-Fly incorporates a counterweight to maintain proper balance, a double watertight chamber rated at IP68 for resistance against shocks, as well as gold-plated electric contacts, avoiding oxidation in low-current applications. The synergy of these features guarantees a durable and high-quality solution for demanding environments.

Designed and made in Italy.

Also available in an ATEX certified version, making it suitable for applications in environments at risk of explosion.

Designed For

Turbulent waters

Presence of solids and layers of grease on the surface

Wastewater, sewage

Details

Applications

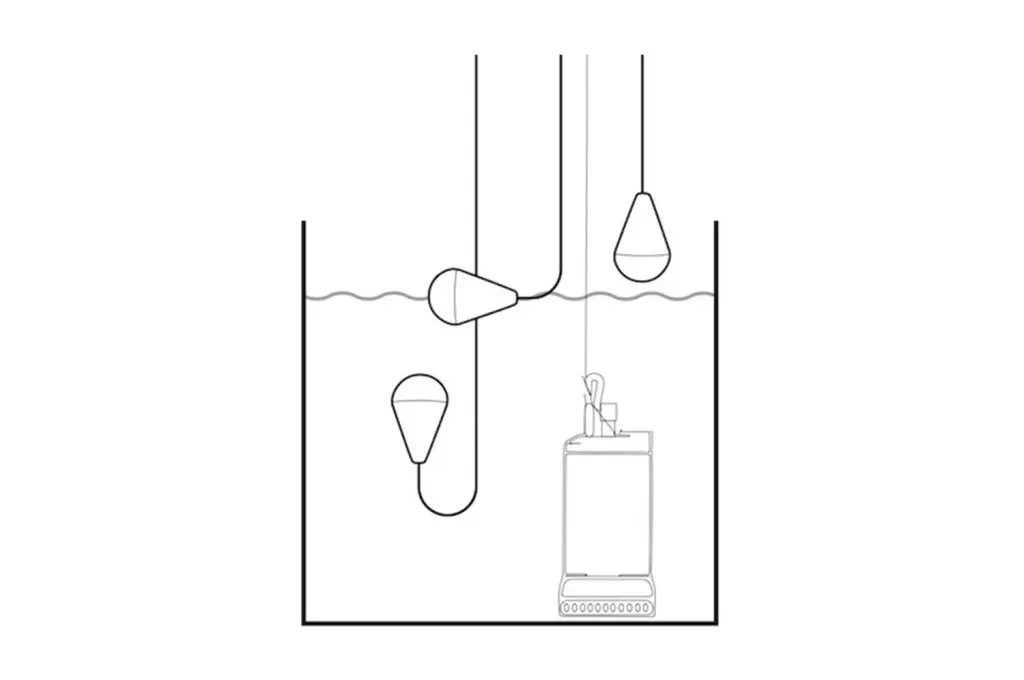

Pumping stations
Level control in tanks, cisterns for clean, rain, and loaded water.
High-level/overflow alarm switch.
Dry-running protection for low-level detection.
ATEX certified version for applications in potentially explosive environments

Features

Quality and safety. E-Fly the tilt float switch for wastewater, designed to ensure optimal performance and last over time. Characteristics:

Tilt float switch: Designed to operate in turbulent waters and with suspended solids. The flipping/tilting allows reliable contact switching even in challenging environmental conditions.
Total absence of roughness: Prevents operational interferences due to undesired friction.
High buoyancy thrust: Essential due to the possible loads typical of the application.
High sealing level of the cable and double body: Prevents harmful infiltrations.
Integrated counterweight: Guarantees the stability of the float in turbulent waters and with debris.
Gold-plated contacts: Guarantee a secure and reliable operation over time, even in humid and corrosive environments.
Impeccable sealing over time: Thanks to the innovative overmolding technique developed by Mac3.

Data

Weight:

1.89 kg/db
